Description
HAWKE AIRMAX 30 SF COMPACT 3-12X40 AMX IR
Built specifically with airgunners in mind, the Hawke Airmax 30 SF Compact 3-12×40 AMX IR is equipped to handle the ballistic traits unique to air-propelled projectiles. Be it either heavy, lead pellets or alloy rounds and even air bolts. Hawke’s Airmax riflescope series is a product of the same rigorous engineering and also manufacturing standards that characterize the Hawke Sport Optics’ entire optics lineup.
This riflescope’s AMX IR glass etched reticle is based on common 10x Mil-Dot spacing and, of course, offers multiple aim points. This is especially useful when shooting airguns with parabolic trajectories. Half Mil-Dot spacing on the lower post provides more aim points, especially for long shots.The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and may be used for bracketing.
If you’re in the market for a high-quality, reliable, versatile optic for your air rifle, look no further than Hawke’s Airmax line of riflescopes. Airmax scopes feature Hawke’s H2 optics in a variety of configurations, designed specifically to suit airgun characteristics, but also suited for other rifles.
Features
Wide Angle optical system ideal for varmint/airgun.
Lightweight and compact construction – short eye relief.
16 layer fully multi-coated optics for exceptional clarity.
Side focus control for parallax adjustment to infinity.
30mm mono-tube chassis for superior strength.
Glass etched, red-illuminated AMX reticle.
6 levels of brightness with off positions in-between.
1⁄10 MRAD capped, resettable target turrets.
Fast focus eyebell and high torque zoom ring.
Side-focus parallax correction from 10 yards to infinity.
Waterproof, shockproof, nitrogen purged.
All-caliber rated.
SPECIFICATIONS
Objective Lens: 40mm
Reticle: AMX IR
Parallax: Side Focus
Magnification: 3 – 12x
Optical System: System H2
Focal Plane: SFP (Second Focal Plane)
Scope Tube: 30mm
Illumination: 6 Levels with Off Positions In-between – Red
Field of View: 43.7 – 10.9ft @100yds / 14.6 – 3.6m @100m
Field of View (°): 8.3 – 2.1
Eye Relief: 3″ / 76mm
PX/Focus (Error free from): 10yds – ∞ / 9m – ∞
Exit Pupil: 0.52 – 0.13″ / 13.3 – 3.3mm
Turret Type: Target
Turret Caps: YES
Click Value: 1⁄ 10MRAD
Elevation Turret Clicks (max): 30 MRAD
Windage Turret Clicks (max): 30 MRAD
Ocular Type: Fast Focus
Power Selector: Knurled Posi-Grip
Lens Coating: Fully Multi-Coated – 16 Layers

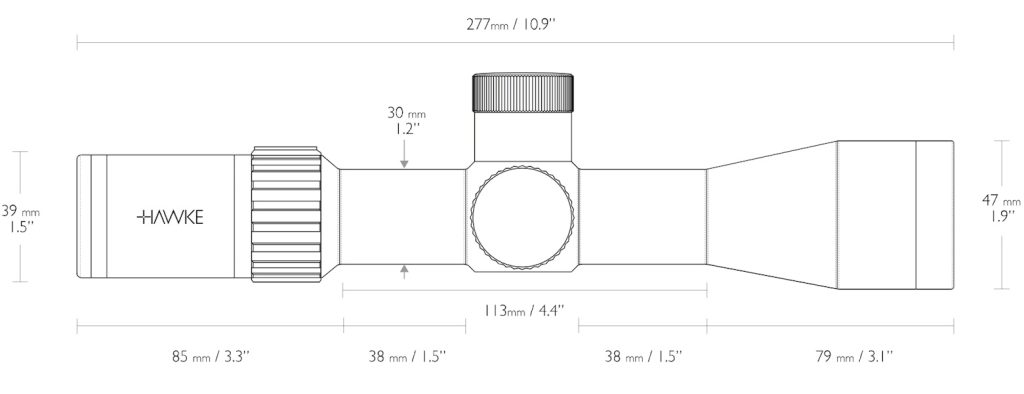

Length: 10.9″ / 277mm
Weight: 20.8oz / 589g
Nitrogen purged: YES
Shockproof: YES
Waterproof: YES
Fog proof: YES
About Hawke Optics
Hawke Optics is a worldwide market leader, offering an extensive range of both high quality and value for money sporting optics. From Rifle and Crossbow Scopes to Binoculars and Range Finders, and also Red Dots, Lasers and Spotting Scopes. Furthermore, they offer Bipods, Tripods, Mounts and Optic Accessories, as well as spare parts.
The Hawke brand, of course, offers extensive information on all of their products. You can, in fact, view videos, read reviews and even download reticle sheets and instruction manuals. Or, you can experience the “Hawke Life”, where they focus on Nature, as well as Sport. Learn a thing or two about shooting and hiking, and also many other relevant uses for their products.
From humble beginnings in their founder’s garage over 40 years ago, Hawke has obviously become a world leader in sport optics. Headquartered in the United Kingdom with a presence in over 60 countries and expanding to the United States in 2007, they are still a family-run business today.
Hawke’s mission is to produce the finest precision optics available anywhere in the world. They do this with relentless dedication to both quality and innovation. As a result, they start with the finest materials and the highest quality standards. Precision designs result in products with outstanding performance in the field. And their world class Warranty will, of course, give you peace of mind in your purchase.
At Hawke Optics, their products represent their founder’s passion for placing a premium on quality, a dedication to value and also devotion to customer service.
Of course, Hawke caters to all levels of shooters, all shooting disciplines and both firearms and air rifles. Once you’ve experienced Hawke you’ll understand what they mean when they say Vision Accomplished.
Instruction Manual (.pdf download)
Reticle Booklet (.pdf download)
